Description:

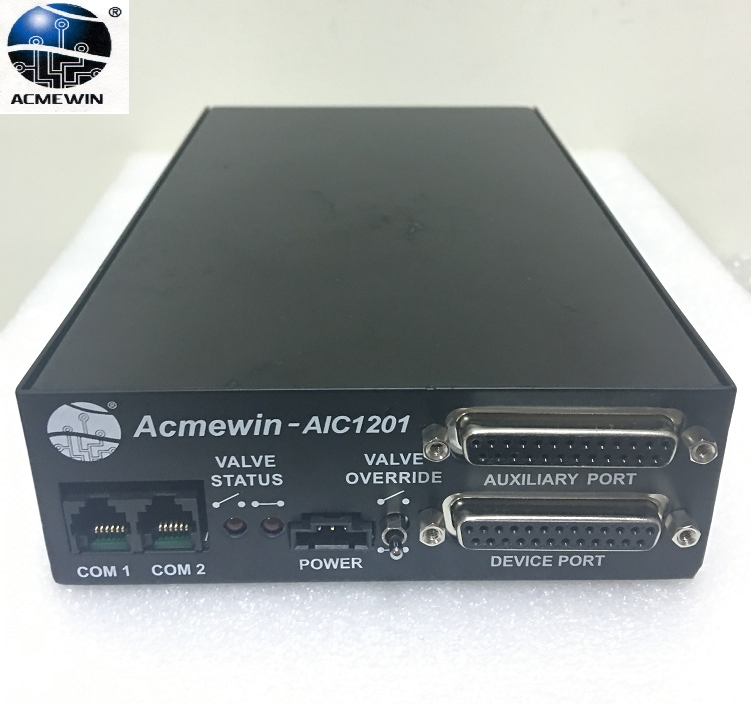

Acmewin AIC1201 AdapTorr Valve Adaptive Pressure Controller

Description By Part Number:
AIC1201 with RS-232 interface, auxiliary interface.
Highlights:
Eliminates Tuning Adjustments
Process Flexibility
Increased system throughput
Wider dynamic control range
RS-232 serial interface
Auxiliary Interface (TTL analog control)

Key Features:
Tighter process control
Dual sensor inputs
Patented multiple control algorithms

Specifications:
Control Algorithms: Advanced Adaptive, Programmable PID, Learning PID, and Hybrid
Accuracy: 0.25% of pressure input signal + 0.01% of full scale
Resolution: 0.01% of full scale of pressure input signal
Pressure Signal Inputs: 0-5 or 0-10 VDC, user selectable
Pressure Signal Output: 0-5 or 0-10 VDC, user selectable
Relay Contacts (2) Switch Rating: 1 A @ 30 VDC
Communications: RS232, Auxiliary Port utilizing logic command and analog inputs and outputs
Input Power: +15 VDC (±5%) @ 1.25 A, -15 VDC (±5%) @ 0.5 A with < 300 mV PP, noise between 10 kHz and 150 kHz
Ambient Operating Temperature: 0-40°C
Compatible Sensors: All sensors with 0-10 VDC linear output and ±15 VDC input requirements
Compatible Valves: All BROOKS Celerity (Millipore) MDVX/MDV valves
